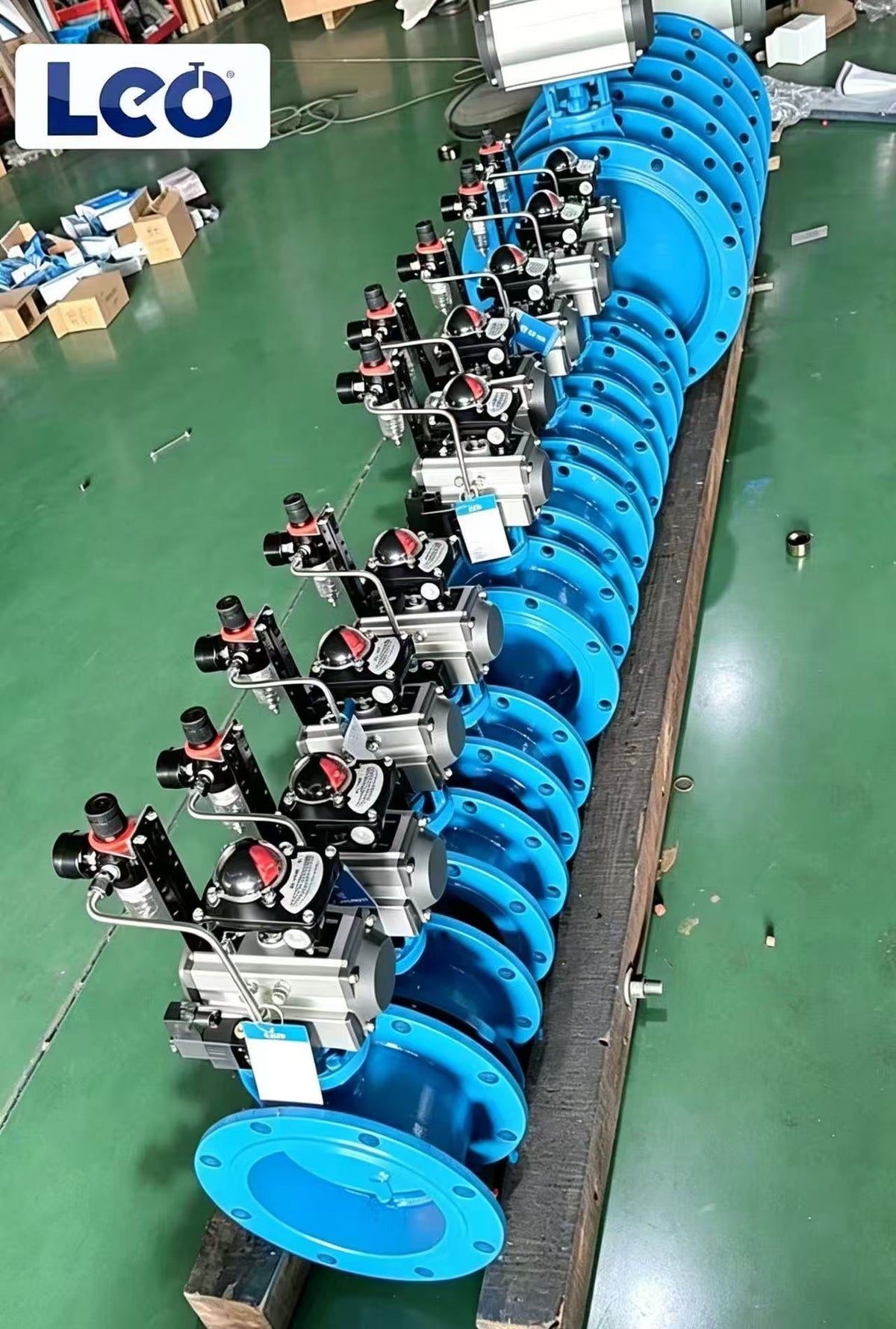

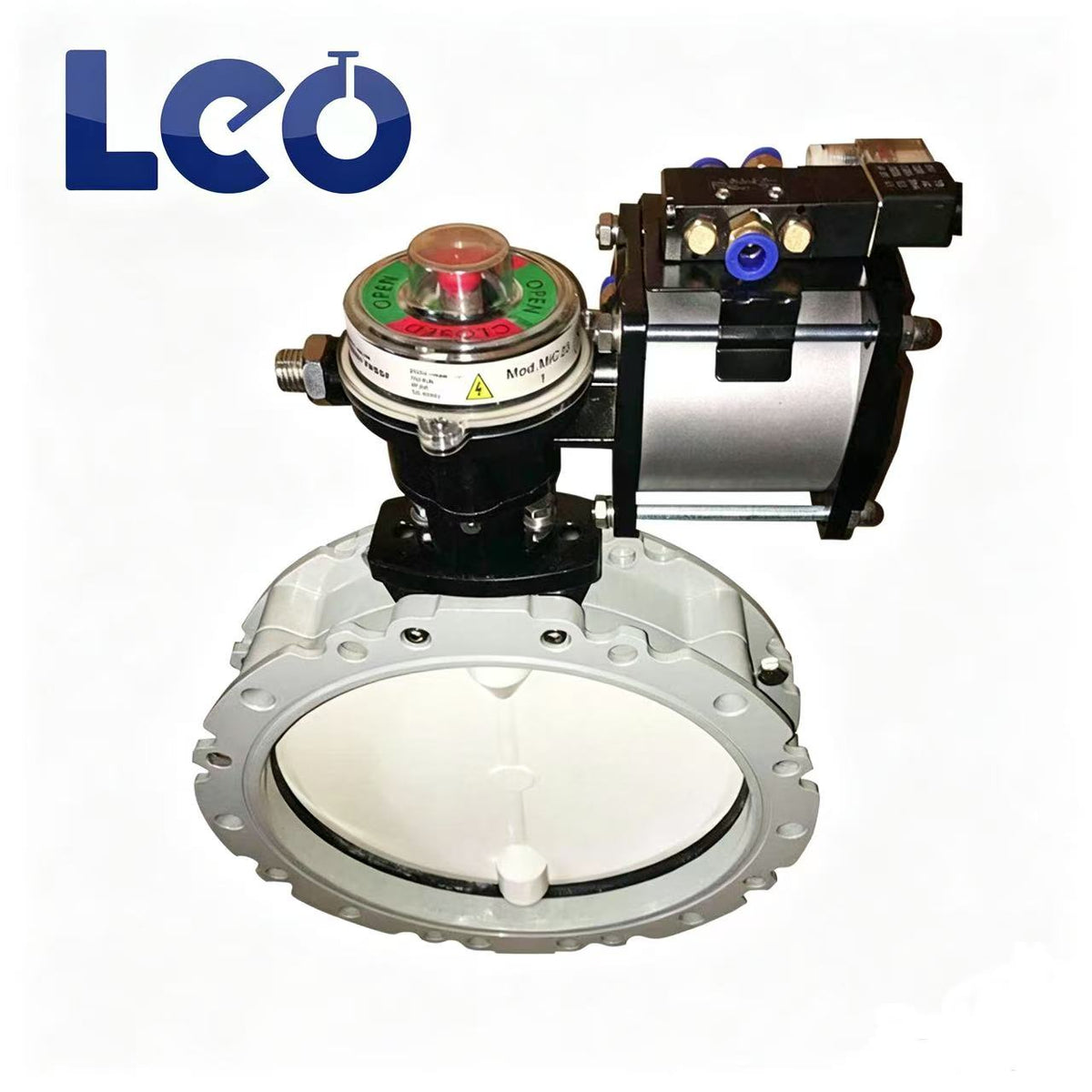

Pneumatic Ventilation Butterfly Valve

The Pneumatic Ventilation Butterfly Valve is a lightweight and reliable flow-control valve designed for the isolation and regulation of air, gas, flue gas, dust-laden gas, and other non-corrosive or mildly corrosive gaseous media. The valve is operated by a pneumatic actuator, providing fast and reliable automatic control for industrial ventilation and gas-handling systems.

Featuring a simple structure, compact design, low operating torque, and quick quarter-turn operation, the valve is well suited for applications requiring frequent opening and closing or remote automatic control. The pneumatic actuator can be equipped with various control accessories to meet different automation requirements.

Key Features

• Pneumatic actuation for fast and reliable automatic operation.
• Lightweight and compact butterfly valve design.
• Low operating torque and low air consumption.
• Quick 90-degree quarter-turn operation.
• Suitable for on-off and flow regulation applications.
• Reliable sealing and stable operating performance.
• Suitable for horizontal and vertical pipeline installation.
• Easy installation, operation, and maintenance.
• Available with single-acting or double-acting pneumatic actuators.
• Pressure rating, size, materials, and actuator configuration can be customized according to customer requirements.

Applications

The Pneumatic Ventilation Butterfly Valve is widely used in:

• Industrial ventilation systems
• HVAC systems
• Dust removal systems
• Flue gas systems
• Air handling systems
• Cement plants
• Steel mills
• Power plants
• Mining and metallurgical industries
• Chemical processing plants
• Industrial exhaust systems
• Gas transportation and distribution systems

Operating Principle

The valve uses a circular butterfly disc mounted on a central or offset shaft. The pneumatic actuator rotates the disc through approximately 90 degrees to control the flow of the medium.

When the disc is rotated to the fully open position, the flow passage is maximized, allowing air or gas to pass through with minimal resistance. When the disc rotates toward the closed position, the flow area is reduced, allowing the medium to be isolated or regulated.

A double-acting pneumatic actuator uses compressed air for both opening and closing. A single-acting actuator uses compressed air in one direction and spring force in the opposite direction, allowing fail-open or fail-closed configurations.

Construction and Materials

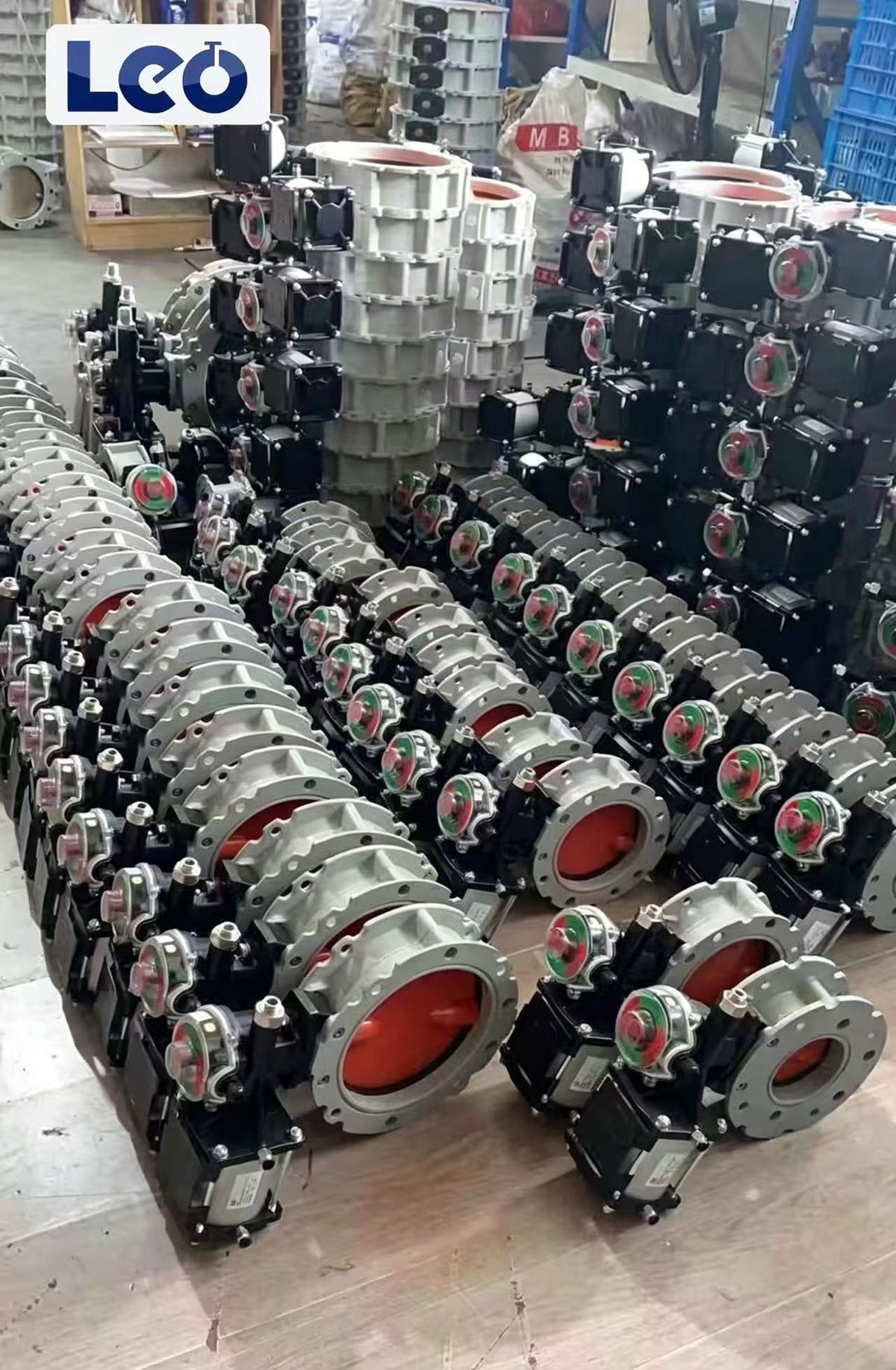

The valve body and disc can be manufactured from carbon steel, stainless steel, ductile iron, aluminum alloy, or other suitable materials depending on the operating conditions.

The material selection can be customized according to the temperature, pressure, medium, corrosion conditions, and specific requirements of the application.

Optional Configurations

• Wafer or flanged connection
• Carbon steel or stainless steel construction
• Single-acting or double-acting pneumatic actuator
• Fail-open or fail-closed operation
• Solenoid valve
• Limit switch
• Valve position indicator
• Air filter regulator
• Pneumatic positioner
• Manual override
• Customized pressure rating
• Customized materials
• Customized dimensions and actuator specifications

Product Advantages

The Pneumatic Ventilation Butterfly Valve offers a practical and economical solution for automated air and gas flow control. Its compact construction, fast pneumatic operation, low operating torque, and easy maintenance make it suitable for a wide range of industrial ventilation and gas-handling applications.

With customizable materials, pressure ratings, actuator configurations, and connection standards, the valve can be designed to meet specific project and operating requirements.

Typical Specifications

Valve Type: Pneumatic Ventilation Butterfly Valve
Actuation: Pneumatic
Operation: Quarter-Turn
Actuator: Single-Acting or Double-Acting
Medium: Air, Gas, Flue Gas, Exhaust Gas, Dust-Laden Gas
Body Material: Carbon Steel / Stainless Steel / Ductile Iron / Customized
Connection: Wafer / Flanged / Customized
Control: On-Off or Modulating
Installation: Horizontal or Vertical
Pressure Rating: Customized According to Application
Material: Customizable
Application: Ventilation, Air Handling, Gas Control, Exhaust and Industrial Process Systems

Customized Service

Custom Pressure Ratings and Materials Available.

Valve size, pressure rating, body material, disc material, actuator type, connection standard, and control accessories can be customized according to customer requirements.

For inquiries and technical specifications, please contact us via email.
