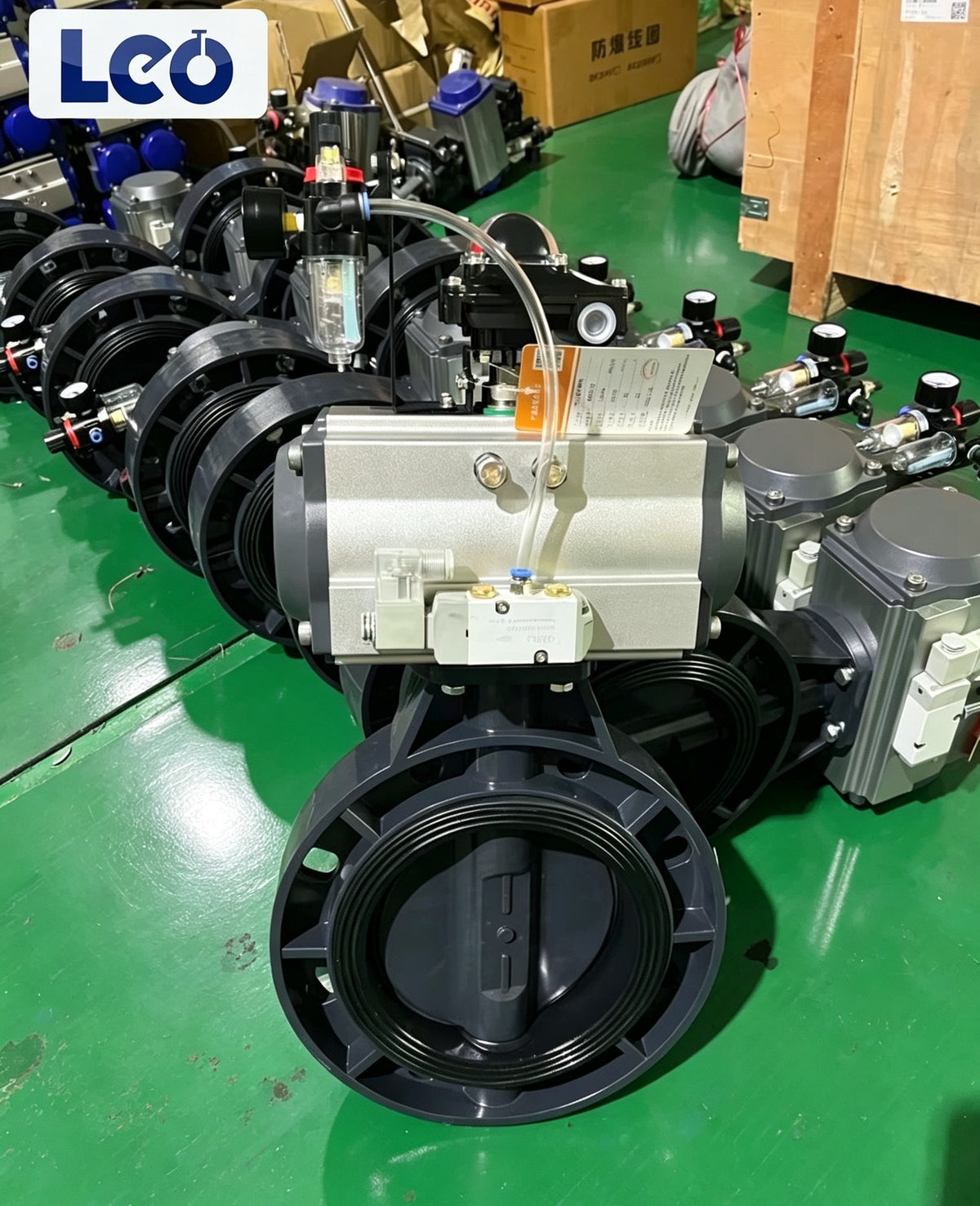

Pneumatic Plastic Butterfly Valve

The Pneumatic Plastic Butterfly Valve is a lightweight, corrosion-resistant valve designed for the isolation and flow control of water, chemicals, corrosive liquids, and other compatible process media. The valve features a high-quality plastic valve body and is operated by a pneumatic actuator, providing fast, reliable, and automated quarter-turn operation.

The plastic construction provides excellent resistance to a wide range of corrosive media while reducing the overall weight of the valve. It is particularly suitable for chemical processing, water treatment, industrial piping, and other applications where corrosion resistance, lightweight construction, and reliable flow control are required.

Key Features

• High-quality plastic valve body with excellent corrosion resistance.
• Lightweight construction for easy installation and maintenance.
• Pneumatic actuator for fast and reliable automatic operation.
• Low operating torque and efficient quarter-turn operation.
• Excellent resistance to many acids, alkalis, salts, and chemical media.
• Reliable sealing performance with reduced risk of leakage.
• Suitable for remote operation and automated control systems.
• Compact structure and space-saving design.
• Suitable for frequent opening and closing operations.
• Valve size, materials, pressure rating, and actuator configuration can be customized.

Applications

The Pneumatic Plastic Butterfly Valve is widely used in:

• Chemical processing systems
• Water and wastewater treatment
• Industrial water systems
• Chemical storage and transfer
• Electroplating systems
• Semiconductor and electronics industries
• Pharmaceutical production
• Food processing systems
• Swimming pool and water treatment systems
• Corrosive liquid piping systems
• Industrial circulation and drainage systems

Operating Principle

The valve operates through a 90-degree rotary motion of the butterfly disc. The pneumatic actuator converts compressed-air energy into rotary movement to open or close the valve.

When the valve is fully open, the disc is positioned approximately parallel to the flow direction, allowing the medium to pass through the valve with minimal obstruction. When the valve is fully closed, the disc rotates perpendicular to the flow direction and the sealing system isolates the pipeline.

A double-acting pneumatic actuator uses compressed air for both opening and closing. A single-acting pneumatic actuator uses compressed air in one direction and spring force in the opposite direction, allowing the valve to be configured for fail-open or fail-closed operation.

Materials and Construction

The valve body can be manufactured from corrosion-resistant engineering plastics such as UPVC, CPVC, PP, PVDF, or other suitable materials according to the application requirements.

The disc and stem can be manufactured from suitable corrosion-resistant materials, while the sealing material can be selected according to the characteristics of the process medium, operating temperature, and pressure.

Different material combinations are available to ensure compatibility with specific chemical media and operating conditions.

Advantages

The Pneumatic Plastic Butterfly Valve combines excellent corrosion resistance with lightweight construction and reliable pneumatic automation.

Compared with conventional metal butterfly valves, the plastic construction offers improved resistance to many corrosive chemicals while reducing valve weight. The pneumatic actuator enables fast response and convenient remote control, making the valve suitable for modern automated process systems.

The compact design, low operating torque, corrosion resistance, and easy maintenance make it an economical and practical solution for a wide range of fluid-handling applications.

Optional Configurations

• UPVC / CPVC / PP / PVDF valve body
• Single-acting pneumatic actuator
• Double-acting pneumatic actuator
• Fail-open or fail-closed operation
• Solenoid valve
• Limit switch
• Valve position indicator
• Air filter regulator
• Pneumatic positioner
• Manual override
• Customized sealing materials
• Customized pressure and temperature ratings
• Customized valve size and connection standard

Typical Specifications

Valve Type: Pneumatic Plastic Butterfly Valve
Body Material: UPVC / CPVC / PP / PVDF / Customized
Actuation: Pneumatic
Operation: Quarter-Turn
Actuator: Single-Acting or Double-Acting
Disc Material: Plastic / Stainless Steel / Customized
Stem Material: Stainless Steel / Customized
Seal Material: EPDM / FKM / PTFE / Customized
Medium: Water, Chemicals, Corrosive Liquids, and Compatible Fluids
Connection: Wafer / Flanged / Customized
Control: On-Off or Modulating
Pressure Rating: Customized According to Material and Application
Temperature Rating: Customized According to Material and Seal
Installation: Horizontal or Vertical

Customization

Custom Pressure Ratings, Materials, Sizes, and Actuator Configurations Available.

The valve can be customized according to customer requirements, including valve body material, disc and stem materials, sealing material, pressure rating, temperature range, actuator type, connection standard, and control accessories.

For technical specifications and inquiries, please contact us via email.
